This item fits: Universal Application.
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 19ï¼?.3Barï¼?/p>
1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.
3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.
Bearing: Floating Bearing

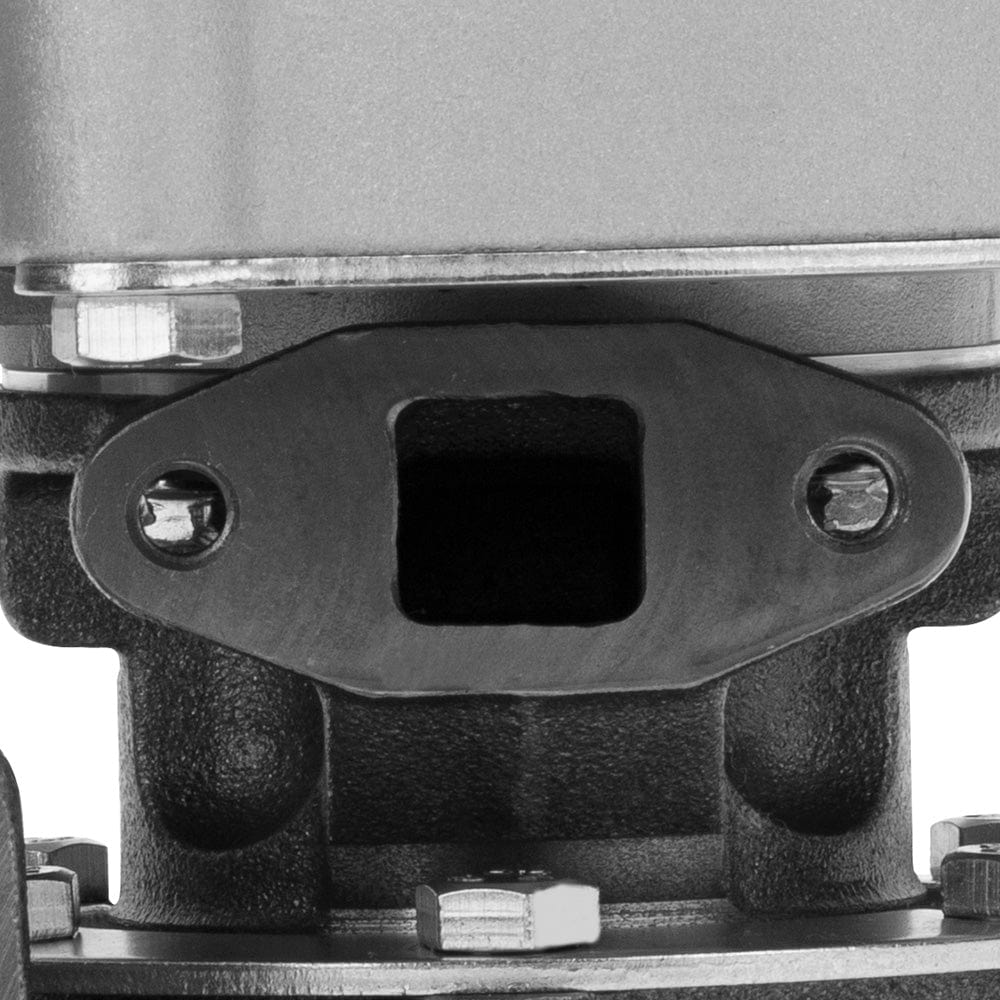

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inletï¼?5mm/87mm
Compressor outletï¼?2mm(inside diameter)ã€?2mm(outer diameter)
Compressor inletï¼?8 mm(inside diameter)ã€?7mm(outer diameter)
Hosepower: Up to 400+HP
Condition: Brand New

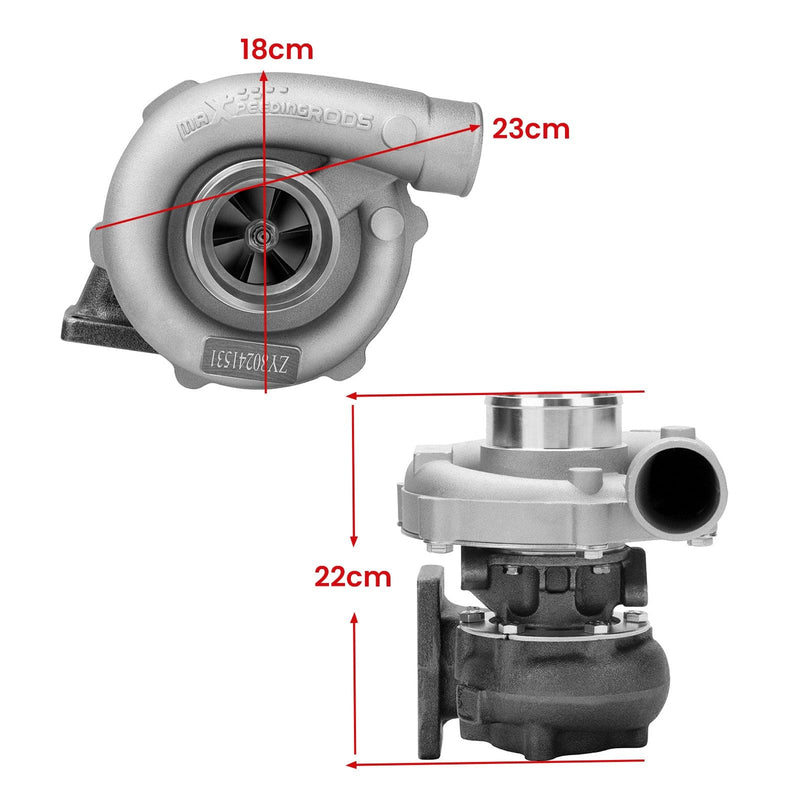

Package Size:26x 25x 23 cm
Package Weight: 7250g
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
* Professional Installation is Highly Recommended.
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
- Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.
- Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
- Compressor housing：ZL104 aluminum.
Cast Aluminium with good gas tightness and corrosion resistance.
- 100% BALANCING TEST, This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
- High Quality Material.
- Boost Engine Horsepower Significantly.
- Increase Engine Power and Torque Outpout.
- Maintain Combustion Chamber Pressure and Fuel/Air Load.
- Built for Durability and Strength.
