maXpeedingrods 8 Inch 3 Jaw Lathe Chuck Self-Centering Milling 200mm Compatible for Woodworking K11-200


Price:
Sale price$162.80
  • * Competitive Price
  • * Shipping Faster
  • * Condition: 100% Brand New
  • * Warranty: 1-year warranty against any manufacturing defects

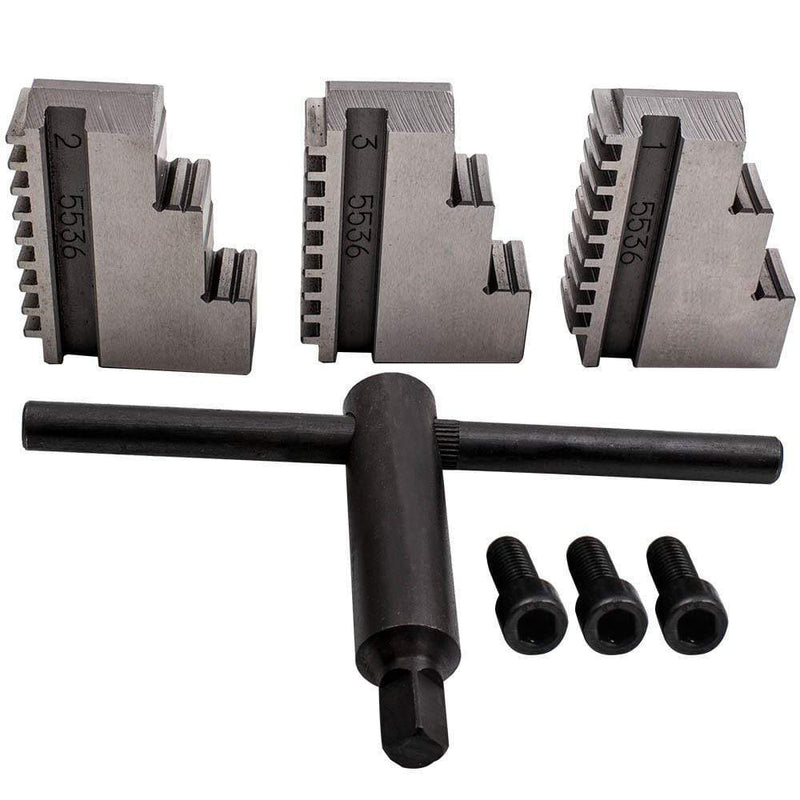

  • * Accessories: You will receive exactly as shown in the pictures
Stock:
In stock (20 units), ready to be shipped

Description

Applications
Compatible for general lathe, economical CNC lathes, grinding machines, milling machines, drilling, and machine accessories

Specifications:
Material: Hardened Steel
Model: K11-200
Max RPM: 3000 r/min
Jaw: 3 Jaw
High precision: no greater than 0.05mm
Application: Compatible for CNC Drilling Milling Machine

Lathe Chuck:
Diameter: 200mm(7.874")
Thickness: 75mm(2.953")
Center Hole: 65mm(2.559")
Bolt Circle Diameter: 180mm(7.087")
Runout: 0.08mm(0.003")
Internal Clamping Range A-A1: 4 - 85mm(0.157- 3.346")
Internal Jamming Range B-B1: 65 - 200mm(2.559- 7.874")
External Clamping Range C-C1: 65 - 200mm(2.559- 7.874")

Notice:
* No instruction included and professional installation recommended
* Please contact us for whatever we can do!
