A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The objective of a turbocharger is to improve an engine's volumetric efficiency by increasing the density of the intake gas (usual air) allowing more power per engine cycle.Mxr-us.myshopify.com provides turbocharge for sale at the most competitive price!
Perfect Compatible for all 1.8L-3.0L engine
Horse Power: Capable of Boosting Horse Power up to 400BHP
Cooling Type: Water + Oil
Compressor Trim: 48
Compressor Inducer Diameter: 49.20 mm
Compressor Exducer Diameter: 71 mm
Compressor A/R: 0.6
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5 Blot
Turbine Trim: 76
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Turbine A/R: 0.64
Bearing: Wet Float
Internal Wastegate: Yes
Condition: 100% Brand New
Warranty: 1 year warranty for any manufacturing defect

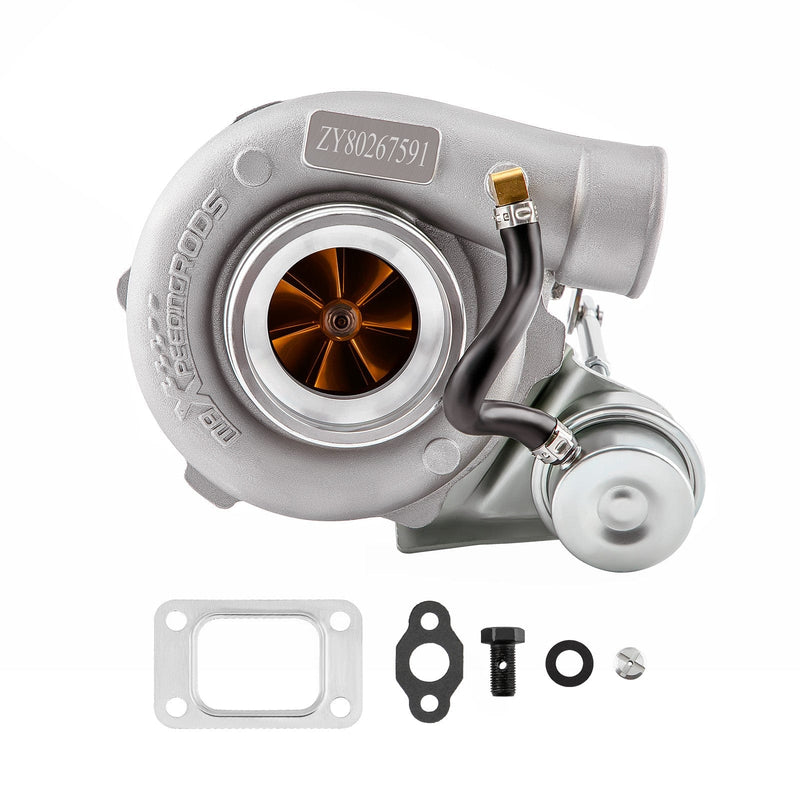

Accessories: You will get exactly as shown in the picture above
All WRX Wagon engines and automatic sedan engines came with a TD04, all manual WRX sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification is required to fit the new turbo.
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding
No instruction included; Professional installation & alignment suggested.
Please confirm your old turbo part number matches up with one of the part numbers above
