Perfect Compatible for all 1.6L-2.0L engine
Horse Power: Capable of Boosting Horse Power 250PS-450PS
Cooling Type: Water + Oil
Compressor Housing: Aluminum alloy
Turbine Housing: Cast iron
Bearing Type: Wet Float
Internal Wastegate: Yes
Exhaust (Turbo Manifold) Flange: Standard T25 4-Bolt Flange
Exhaust (Downpipe) Flange: 5-Bolt Flange

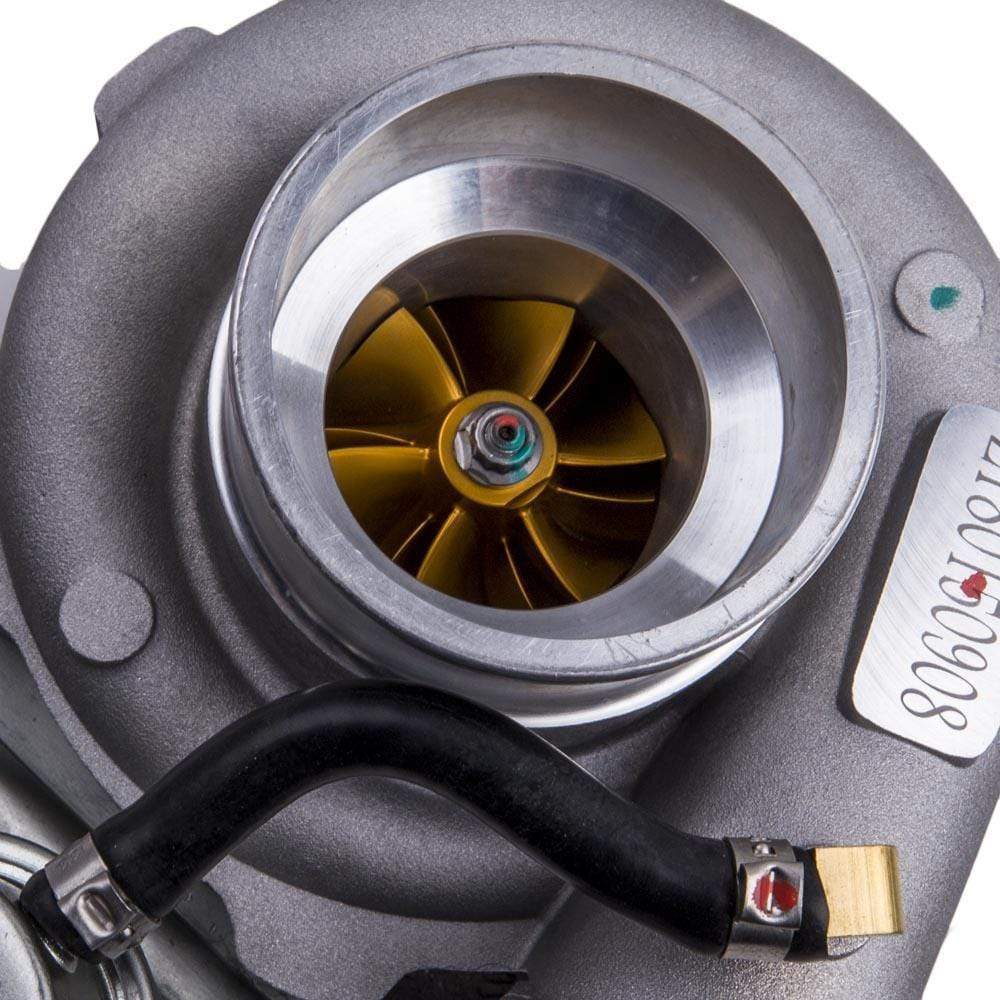

Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71mm
Compressor A/R: 0.6
Compressor Trim: 48
Compressor Wheel Blades: 12
Compressor Impeller color: gold and silver-white random
Turbine Inducer Diameter: 53.9mm
Turbine Exducer Diameter: 47mm
Turbine A/R: 0.64
Turbine Trim: 76
Turbine Wheel Blades: 10
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5 Blot
1) Perfectly designed and durable floating bearing, with high precision dynamic balanced wheel blades, which can boost more than 2.0BAR.
2) High temperature resistance, stainless steel turbo housing can withstand more than 900 degree celsius of exhaust temperature.
3) High efficiency and low inertia wheel blades significantly reduce turbo lag.
4) Water and oil cooling system can extend the life of the turbo The engine power output can be increased by more than 200%, can boost up to 250-450PS.
*modification might be required Compatible for some vehicles.
*The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
