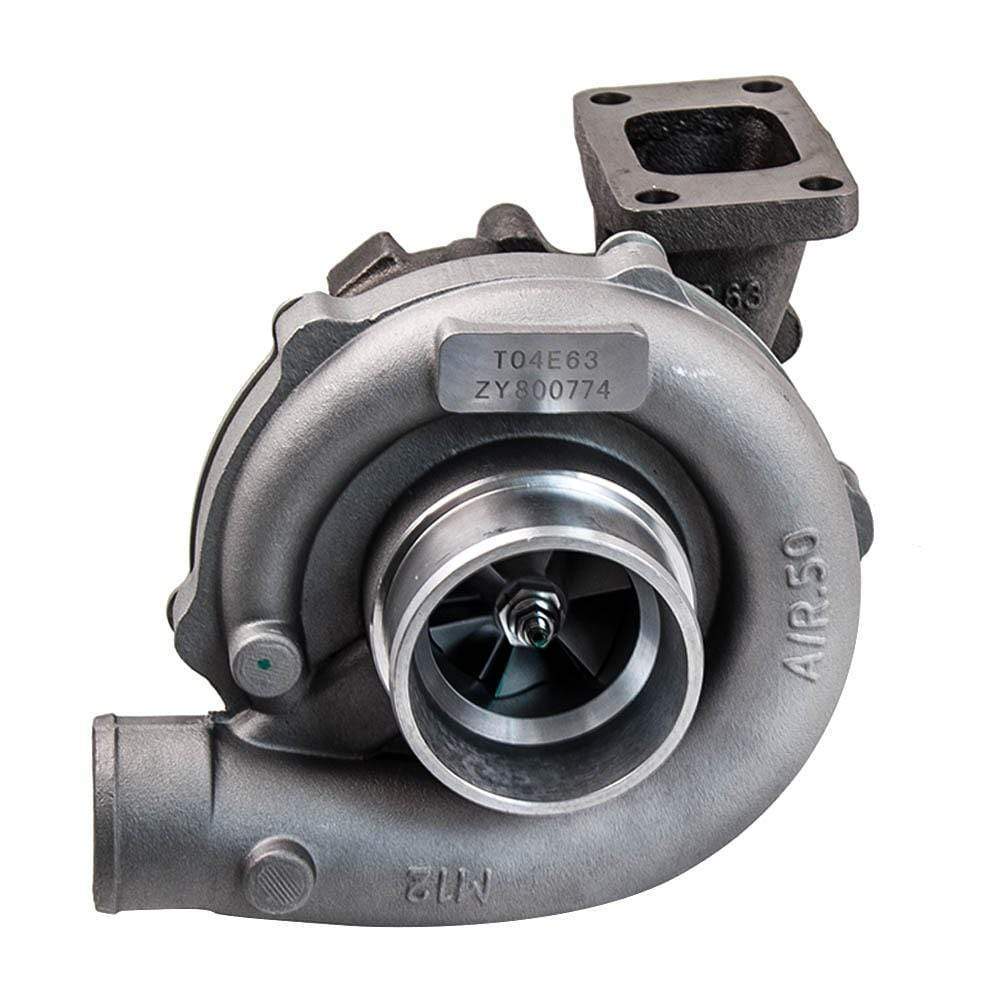

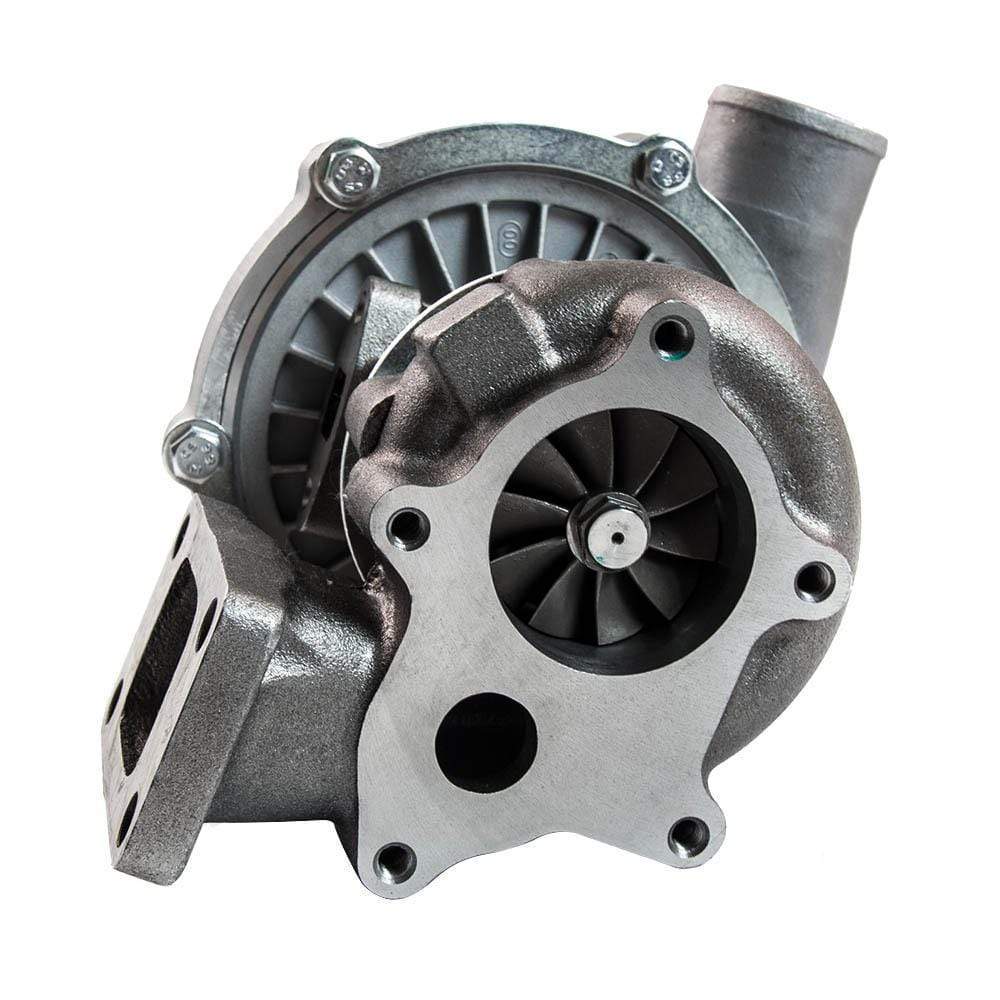

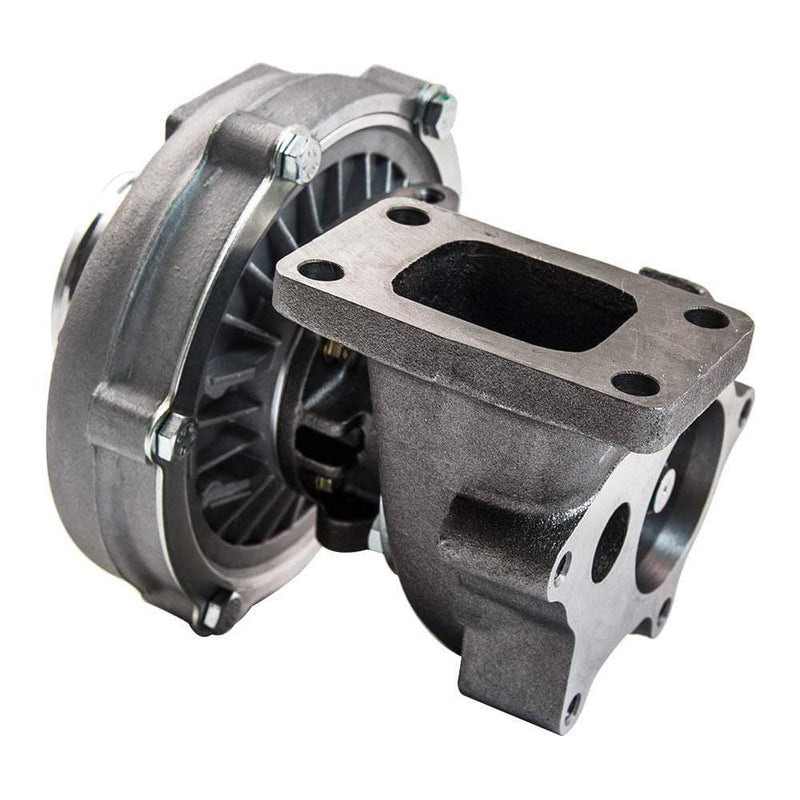

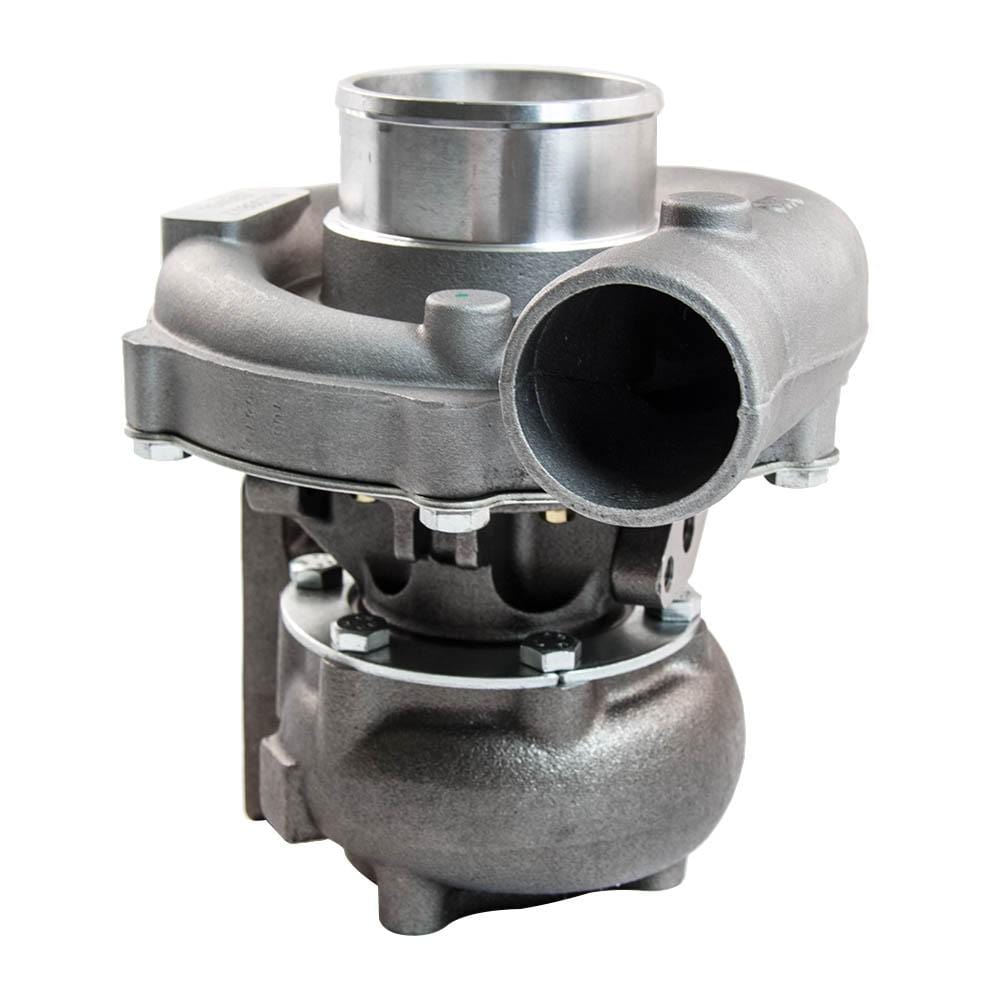

maXpeedingrods Hybrid T3/T4 T04E .63 A/R Turbine 5 Bolt Flange Turbo charger + Oil Feed Line

MaxpeedingrodsSKU: GGT04E63_OFL-IN
filler

Price:
Sale price$118.00
Stock:
In stock (107 units), ready to be shipped

Description

Application
Perfect Compatible for 1.6L-2.5L engines
Perfect Compatible for 3.2L-5.0L engines in twin turbo application, capable to 800HP
boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Specifications
Exhaust (Turbo Manifold) Flange T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange Standard T3 5 bolt downpipe flange pattern
Cooling Type Oil Cooled
Wastegate External wastegate
Horse Power Boost Horse Power up to 300+HP

Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76

Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9

ââââââââââââââââââââââââââââââââââââââââââââââââââ‚? OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Condition: 100% Brand New
Bearing Type: Journal Bearing
Accessories: You will get exactly as shown in the picture above
Warranty: 2 years

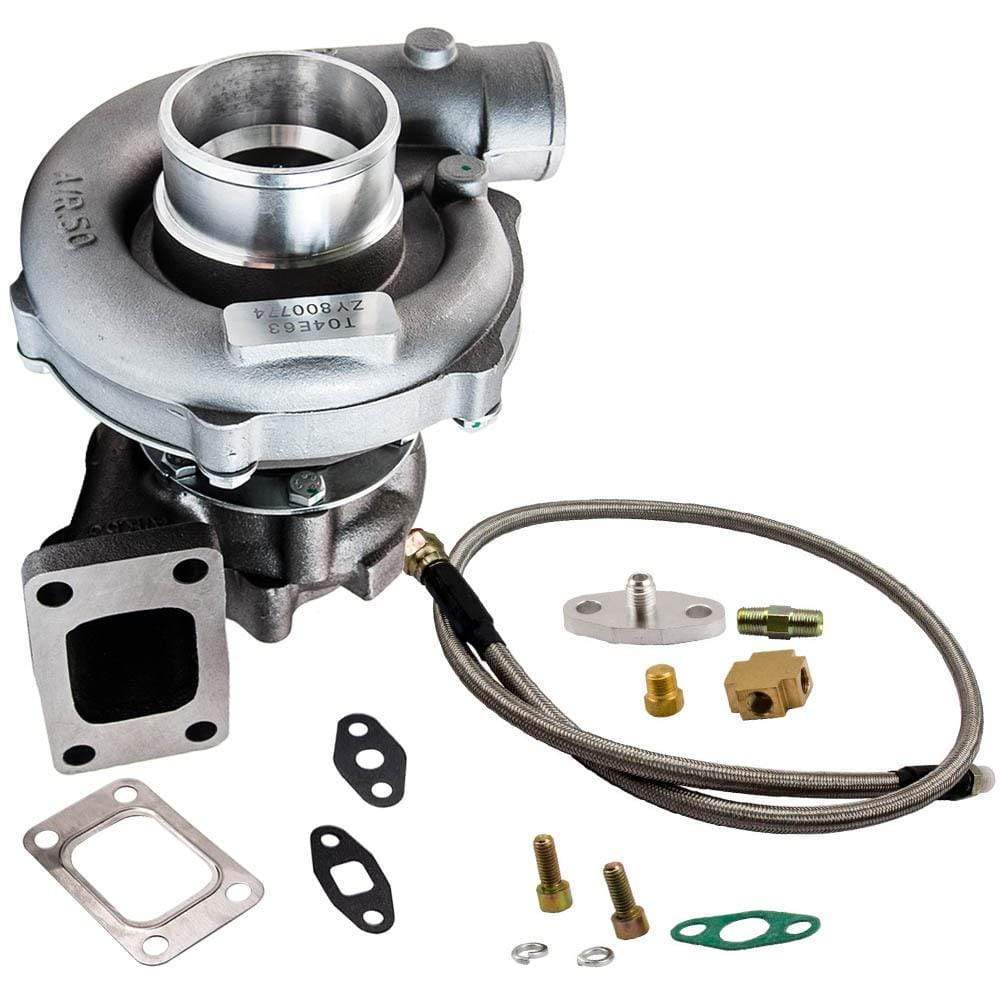

Package
1 x Turbocharger Kit
1 x Braided Turbo Oil Feed Line
Hardware as Shown in the Picture Above

Note
* Professional installation is highly recommended (No Instruction Included)
* This is a universal application turbo, so modification might be required Compatible for some vehicles.
* For any needs please contact us
