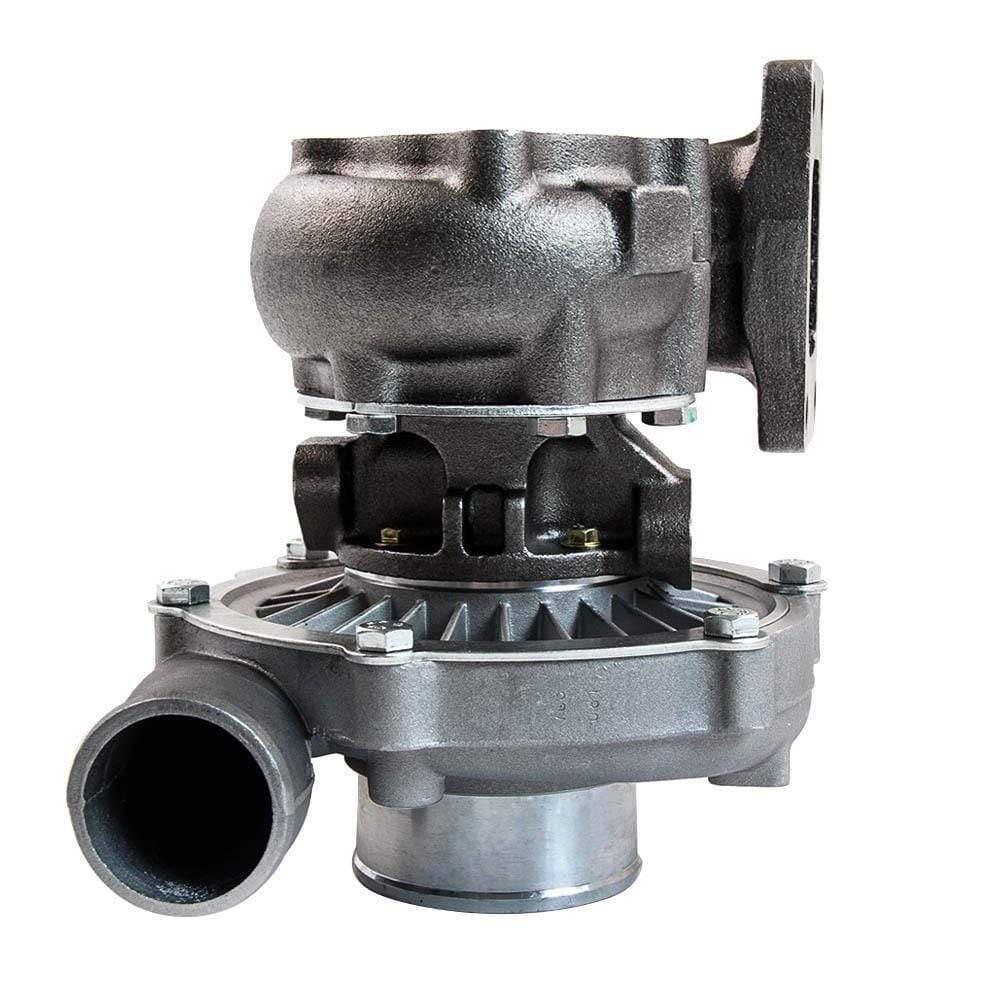

maXpeedingrods T3/T4 T04E High Performance Turbocharger Turbo +Oil Feed And Return Line Kit

MaxpeedingrodsSKU: GGT04E63_OFLORL-LC-V2
filler

Price:
Sale price$164.00
Stock:
In stock (72 units), ready to be shipped

Description

Application
Perfect Compatible for 1.6L-2.5L engines
Perfect Compatible for 3.2L-5.0L engines in twin turbo application, capable to 800HP
Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Specification
Exhaust (Turbo Manifold) Flange T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange Standard T3 5 bolt downpipe flange pattern
Cooling Type Oil Cooled
Wastegate External wastegate
Horse Power Boost Horse Power up to 300+HP
Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76
Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9

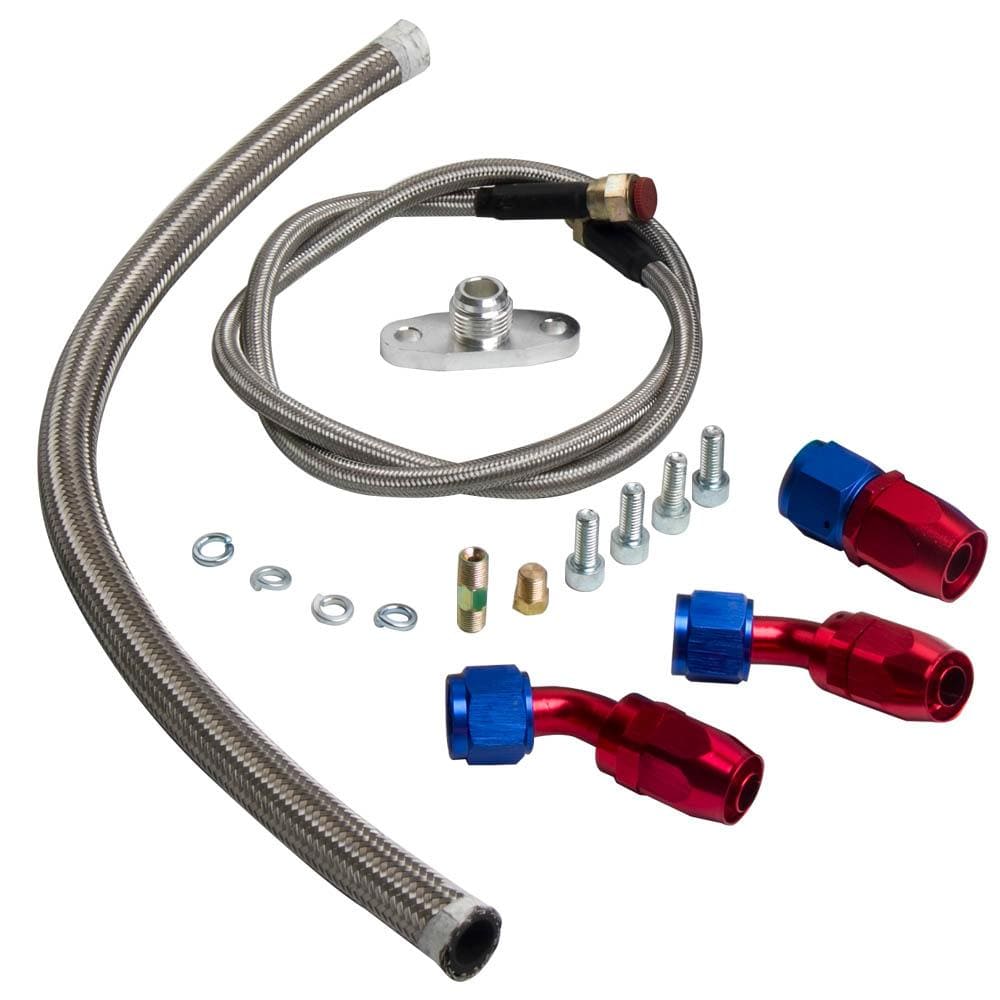

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
âââââââââââââââââââââââââââââââââââââââââââââ€? OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Condition: 100% Brand New
Warranty: 2 years warranty for any manufacturing defect

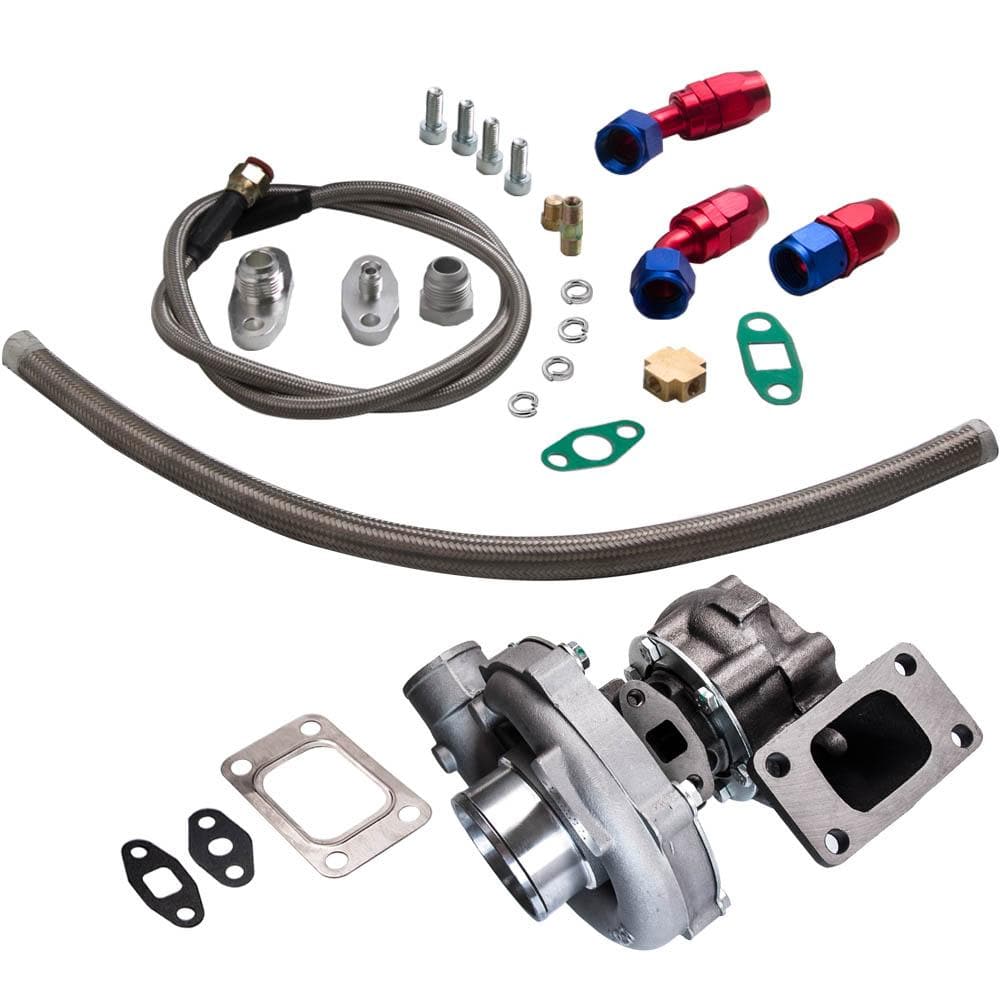

Accessories: You will get exactly as shown in the picture above

Note
This is universal application turbo, so modification might be required Compatible for some vehicles.
Please confirm your old part number matches up with one of the part numbers above
Professional installation is highly recommended (No Instruction Included)
Please contact us for whatever we can do!
